0.3s-0.8s 1.5kgf.m 1500r/min barrier gate movement components

Nom De Marque:	Jiayu
Numéro De Modèle:	JY-DZ-CB-01
Nombre De Pièces:	2pcs
Prix:	Négociable
Détails De L'emballage:	paquet
Conditions De Paiement:	TTT

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

La Chine

Certification:

Nom de produit:

mécanisme de porte de barrière de boom

Tension évaluée:

Vitesse nominale continue:

2000rpm

Courant évalué continu:

Vitesse de sortie:

17RPM

Couple de sortie:

11.8nm

Temps de levage:

0.3~0.8S

Résolution d'encodeur:

12000PPR

Capacité d'approvisionnement:

500pcs par mois

Mettre en évidence:

1500r/Min Swing Gate Mechanism

1.5kgf.M Swing Gate Mechanism

Barrier Gate Movement Components

Description de produit

0.3s-0.8s 1.5kgf.m 1500r/min barrier gate movement components

Description

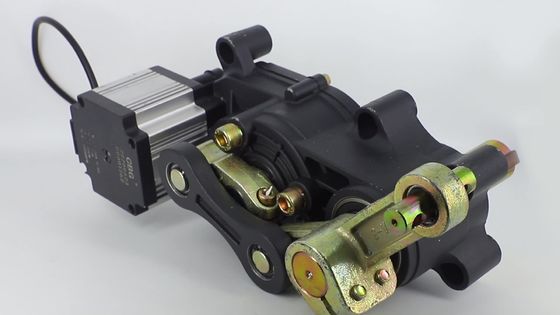

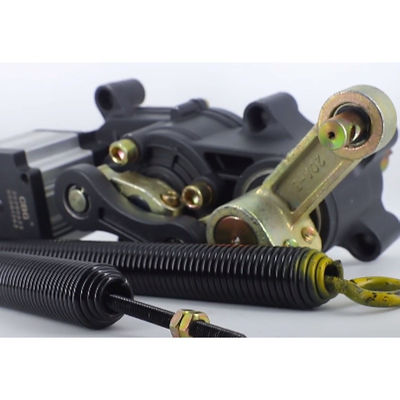

JY-DZ-CB-01/02/03/04 BOOM barrier gate mechanisn work with servo controller suitable for Vehicle Barriers for parking lot, parking garage, office buildings, industrial parks and residential communities etc.

Advantages

Long lifecycle . Reduced operating costs
Installation for independent or simultaneous operation
Quiet and harmonious operation

Product performance characteristics

1) The movement adopts side stick installation, which is convenient for installation and compact in structure.
2) The main body of the movement is made of aluminum alloy, which is made by die-casting process, with reliable mechanical strength and beautiful appearance view, accurate size, good heat dissipation.

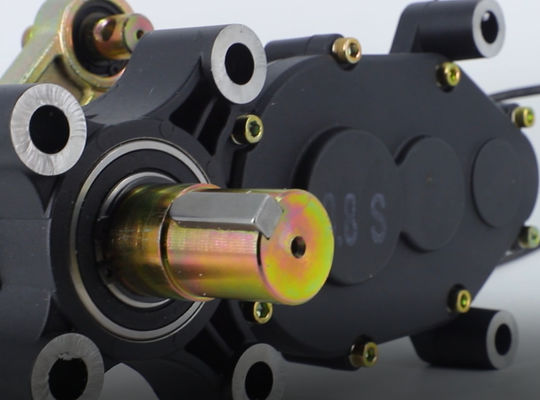

3) The core adopts gear reducer, which has high transmission efficiency and small power output loss; gear material quality scm421, carburizing heat treatment process, precision grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
4) The core adopts DC brushless motor, with large output torque and small volume, which can be realized by controller the speed can be adjusted at will. When the lowering and lifting poles are in place, the deceleration buffer can be realized to make the brake poles in place stably.
5) DC24V safety voltage is adopted for the motor to avoid electric shock accident caused by electric leakage and personal injury safety is more guaranteed.

No	Model+	output power	voltage	current	Motor amount Fixed speed	Lifting and lowering time	Spindle output torque	insulation class	protection class
1	18B-0.3S	120W	DC24V	6A	1500r/min	0.3S-0.8S	1.5kgf.m	F	IP44
2	18B-0.6S	120W	DC24V	6A	1500r/min	0.6S-1.5S	3kgf.m	F	IP44
3	18B-1.2S	120W	DC24V	6A	1500r/min	0.6S-1.5S	5.9kgf.m	F	IP44
4	18B-2.5S	120W	DC24V	6A	1500r/min	2.5S-6.0S	11.8kgf.m	F	IP44

Specification

item	value
Place of Origin	China
Brand Name	jiayu
Rated voltage	24v
Rated power	120w
Continuous rated speed	2000rpm
Continuous rated current	6A
Peak current	12A
Output speed	17RPM
Output torque	1.5Kgf..m
Lifting time	0.3~0.8S
Encoder resolution	12000PPR
Product name	barrier gate movement

0.3s-0.8s 1.5kgf.m 1500r/min barrier gate movement components 1

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

FAQ

Q1: What is the MOQ?

A: MOQ depends on our clients demands, we welcome trial order before mass production. We generally recommend a minimum order of 2 units as a sample trial.

Q2: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

Q3: How about the payment method?

A: Standard products: 30% deposit, 70% balance payment before shipment.

Q4: How about the lead time?

A: Normally we have stock for the hot sale models of standard products.

Regular products need 7-10 working days. The customized products need 15-20 working days.

Q5: How long is your warranty period?

A: One-year guarantee & Life-time technology support.
