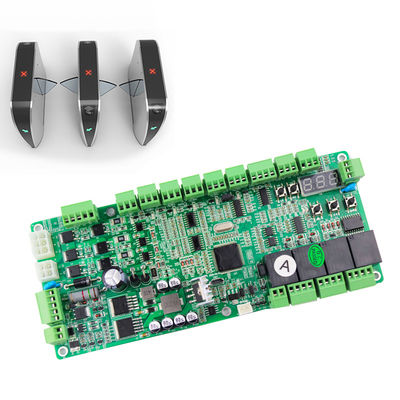

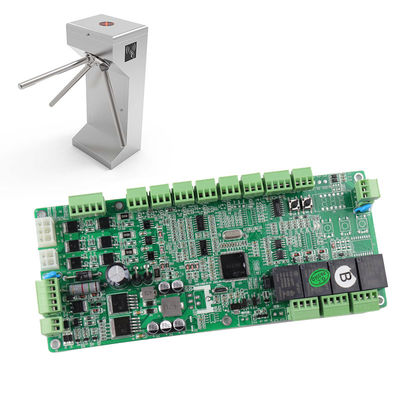

MBC2406 Turnstile Gate Control Board for Tripod Turnstile Gate

Product Description
The MBC2406 Turnstile Gate Control Board is a high-performance, intelligent DC servo driver specifically engineered for tripod turnstile gates, speed gates, swing gates, and pedestrian access lanes. Designed to operate on a safe DC24V power supply with a rated power of 150W, this control board serves as the central processing unit for modern access control systems, managing the precise indexing and locking mechanisms required for three-arm tripod rotations.

At the core of its intelligence lies the support for up to 6 pairs of independent sensor interfaces, enabling comprehensive monitoring of gate position, zero-point calibration, anti-pinch safety, and user passage detection. The MBC2406 utilizes advanced sinusoidal vector control (Field Oriented Control) to drive brushless servo motors, ensuring zero standby current, quiet operation, and precise torque control, eliminating vibration during the indexing of tripod arms.

• Bi-Directional Passage Control: Manages entry and exit directions separately with reliable logic control, supporting access mode settings such as card swiping, freedom, and prohibition at both entrance and exit points-4-5.

• Comprehensive Safety Logic: Features integrated logic detection for illegal intrusion, tailg

  Features

  • 6 Pairs of Independent Sensor Inputs: The control board supports up to 6 independent sensor interfaces, compatible with PNP, NPN, normally open, and open collector types, ensuring accurate passage detection, anti-tailgating, and timely response.

  • Advanced Vector Control (FOC): Utilizes sinusoidal Field Oriented Control technology to drive brushless motors, delivering zero standby current, quiet operation, and precise torque control, eliminating vibration during tripod arm indexing.

  • Bi-Directional Passage Control: Manages entry and exit directions separately with reliable logic control, supporting access mode settings such as card swiping, freedom, and prohibition at both entrance and exit points.

  • Comprehensive Safety Logic: Features integrated logic detection for illegal intrusion, tailgating, detention, reverse traffic, and infrared anti-pinch, with adjustable sensitivity for physical anti-pinch protection.

  • Wide Access System Compatibility: Seamlessly integrates with various access control systems, including RFID readers, fingerprint scanners, face recognition systems, QR code terminals, and other biometric devices.

  • Multi-Interface Communication: Supports RS232 serial communication with Modbus protocol, as well as RS485 and CAN protocols, enabling easy integration with third-party controllers and upper-level management systems.

Specification
